一.基础笔记

1.TypeDict和BaseModel对比


2.State状态更新策略

(1).默认Reducer（覆盖更新）

class DefaultReducerState(TypedDict):
    foo: int
    bar: List[str]

def node_default_1(state: DefaultReducerState) -> dict:
    print(state["foo"])
    print(state["bar"])
    return {"foo": 22}

def node_default_2(state: DefaultReducerState) -> dict:
    print()
    print(state["foo"])
    print(state["bar"])
    return {"bar": ["bye1","bye2","bye3"]}


def main():
    print("1. 默认Reducer（覆盖更新）演示:\n")
    builder = StateGraph(DefaultReducerState)

    builder.add_node("node1", node_default_1)
    builder.add_node("node2", node_default_2)

    builder.add_edge(START, "node1")
    builder.add_edge("node1", "node2")
    builder.add_edge("node2", END)

    graph = builder.compile()

    result = graph.invoke(input={"foo": 1, "bar": ["hi"]})
    #print(f"初始状态: {{'foo': 1, 'bar': ['hi']}}")
    print(f"执行结果: {result}\n")

执行结果：


(2).add_messages Reducer（消息列表专用）

"""
LangGraph Reducer函数演示 - add_messages Reducer（消息列表专用）
"""

from typing import Annotated, List

from langchain_core.messages import HumanMessage, AIMessage
from typing_extensions import TypedDict
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages

# 2. add_messages Reducer（消息列表专用）
class AddMessagesState(TypedDict):
    """
    引入的 Annotated 类型，它允许给类型添加额外的元数据。
    messages: Annotated[List, add_messages]
    表示:
    - messages 我的状态里只有一个字段叫 messages，类型是是 List列表类型,
    - add_messages  这里的 add_messages 是一个函数，用于修改 messages 列表
                    每当节点返回对 messages 的“局部更新”时，
                    请用 add_messages 规约器把它合并到旧列表上（追加，而不是覆盖）
    总结：
    节点永远只 return 增量字典，不用手动把旧列表读出来再拼接。
    add_messages 在后台帮你完成“追加”动作；如果换成默认 reducer，旧消息会被整份替换掉
    """
    messages: Annotated[List, add_messages]

def chat_node_1(state: AddMessagesState) -> dict:
    return {"messages": [("assistant", "Hello from node 1")]}

def chat_node_2(state: AddMessagesState) -> dict:
    return {"messages": [("assistant", "Hello from node 2")]}

def run_demo():
    print("2. add_messages Reducer（消息列表专用）演示:")
    builder = StateGraph(AddMessagesState)
    builder.add_node("chat1", chat_node_1)
    builder.add_node("chat2", chat_node_2)

    builder.add_edge(START, "chat1")
    builder.add_edge(START, "chat2")  # 并行执行
    builder.add_edge("chat1", END)
    builder.add_edge("chat2", END)
    graph = builder.compile()

    result = graph.invoke({"messages": [("user", "Hi there!")]})
    print(f"初始状态: {{'messages': [('user', 'Hi there!')]}}")
    print(f"执行结果: {result}\n")

    print("*" * 60)

    # 打印图的ascii可视化结构
    print(graph.get_graph().print_ascii())

if __name__ == "__main__":
    run_demo()

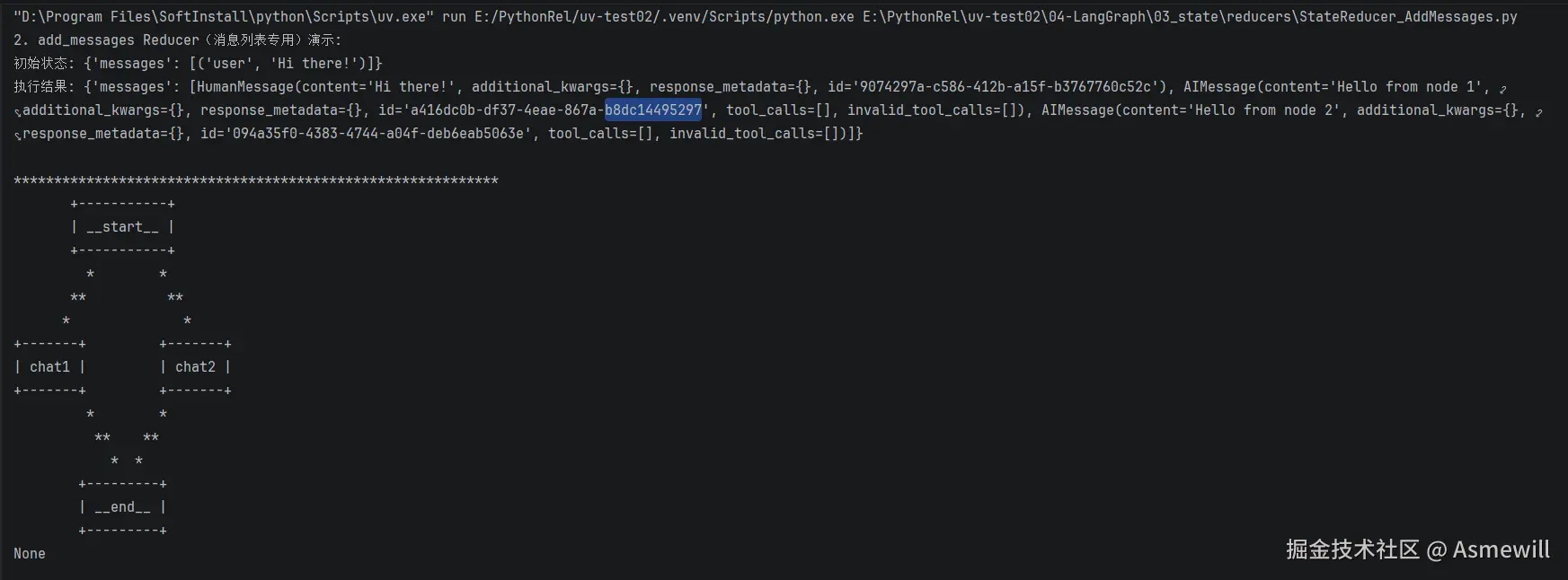

执行结果： image.png

(3).operator.add Reducer（列表追加）

"""
LangGraph Reducer函数演示 - operator.add Reducer（列表追加）
"""

import operator
from typing import Annotated, List
from typing_extensions import TypedDict
from langgraph.graph import StateGraph, START, END

# 3. operator.add Reducer（列表追加）
class ListAddState(TypedDict):
    #data: Annotated[List[int], None]  #默认覆盖
    data: Annotated[List[int], operator.add] # （列表追加）


def producer_1(state: ListAddState) -> dict:
    return {"data": [1, 2]}


def producer_2(state: ListAddState) -> dict:
    return {"data": [3, 4]}


def run_demo():
    builder = StateGraph(ListAddState)
    # 注册节点
    builder.add_node("producer1", producer_1)
    builder.add_node("producer2", producer_2)
    # 顺序执行边
    builder.add_edge(START, "producer1")
    builder.add_edge("producer1", "producer2")
    builder.add_edge("producer2", END)

    graph = builder.compile()
    result = graph.invoke({"data": [0]})
    print(f"初始状态: {{'data': [0]}}")
    print(f"执行结果: {result}\n")


if __name__ == "__main__":
    run_demo()

执行结果：


4.自定义乘法reducer规约器



def MyOperatorMul(current: float, update: float) -> float:
    """自定义乘法reducer，处理初始值为1.0"""
    # 如果是第一次调用，current会是默认值0.0
    if current == 0.0:
        # 对于乘法，恒等元应该是1.0或者 return 1.0 * update
        print(f"current:{current}")
        print(f"update:{update}")
        return 1.0 * update
    return current * update

class MultiplyState(TypedDict):
    factor: Annotated[float, MyOperatorMul]

def multiplier(state: MultiplyState) -> dict:
    return {"factor": 2.0}

def run_demo():
    print("使用自定义reducer解决乘法问题:")
    builder = StateGraph(MultiplyState)
    builder.add_node("multiplier", multiplier)
    builder.add_edge(START, "multiplier")
    builder.add_edge("multiplier", END)
    graph = builder.compile()

    result = graph.invoke({"factor": 5.0})
    print(f"初始状态: {{'factor': 5.0}}")
    print(f"执行结果: {result}")  # 应该是 {'factor': 10.0}
    print(f"解释: 5.0 * 2.0 = 10.0\n")

if __name__ == "__main__":
    run_demo()

执行结果：
